Introduction

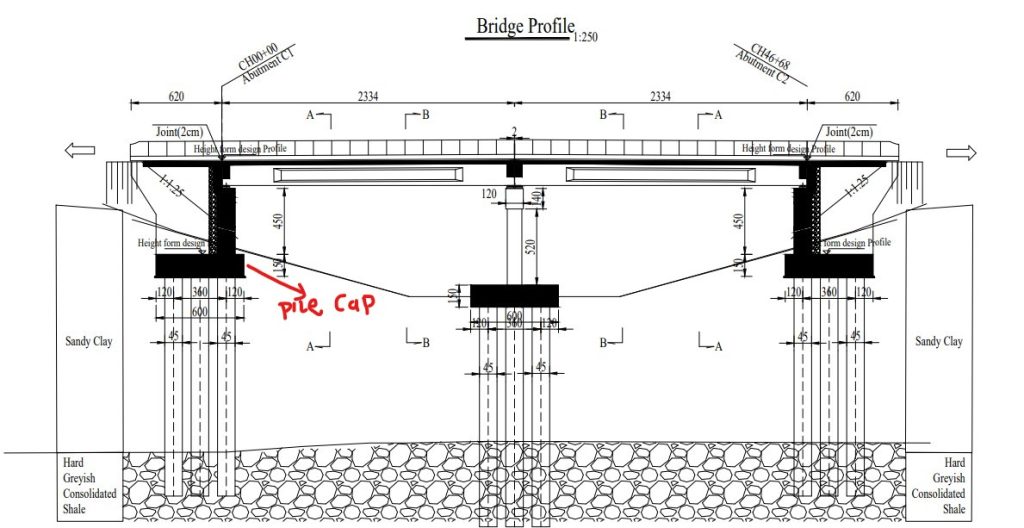

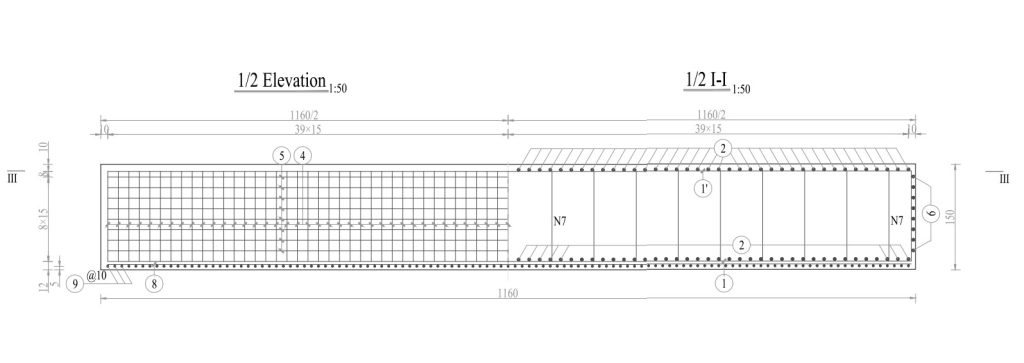

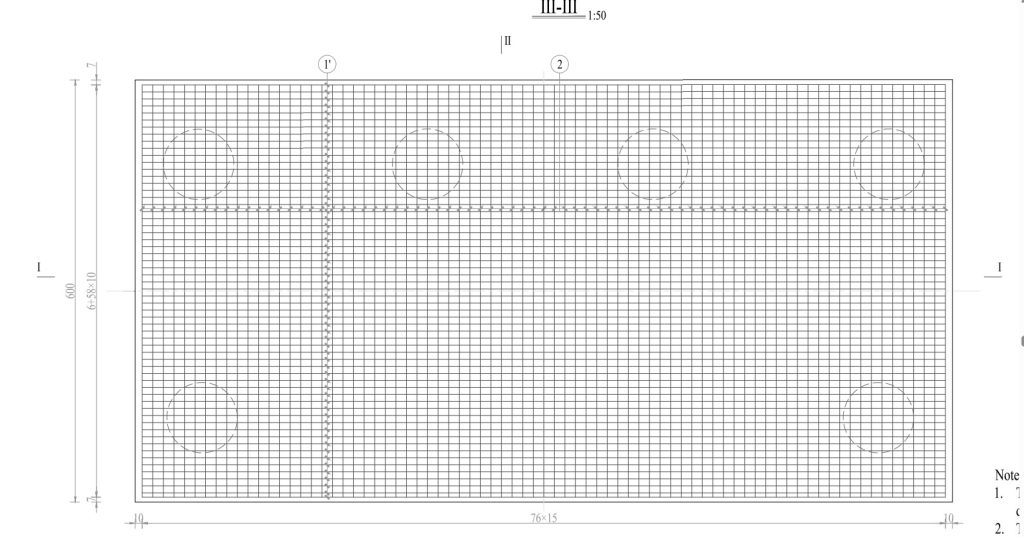

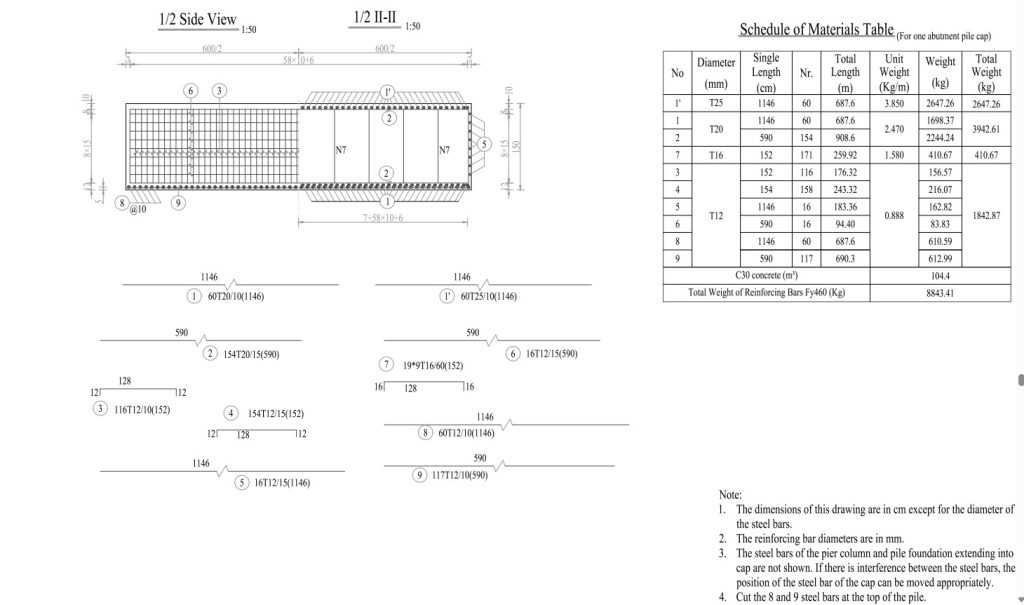

The Initial design from the engineer was to construct a pile cap of dimensions and properties as shown in pictures below:
Pile Cap Dimensions
- Length: 11,60cm (11.6m)
- Width: 600cm (6.0m)
- Height: 150cm (1.5m) (excluding the 100mm blinding layer)
As-built drawing on site

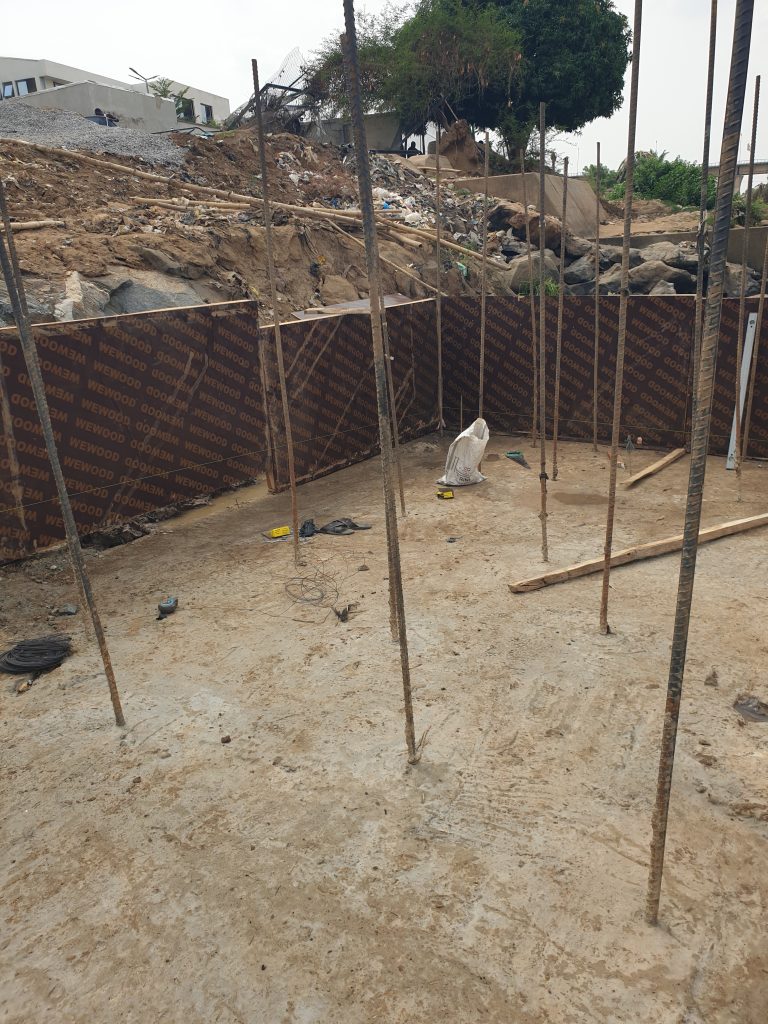

1. Pictures of blinding for pile cap with measurement details
- Thickness: 100mm (cast on-site)
- Grade: 30

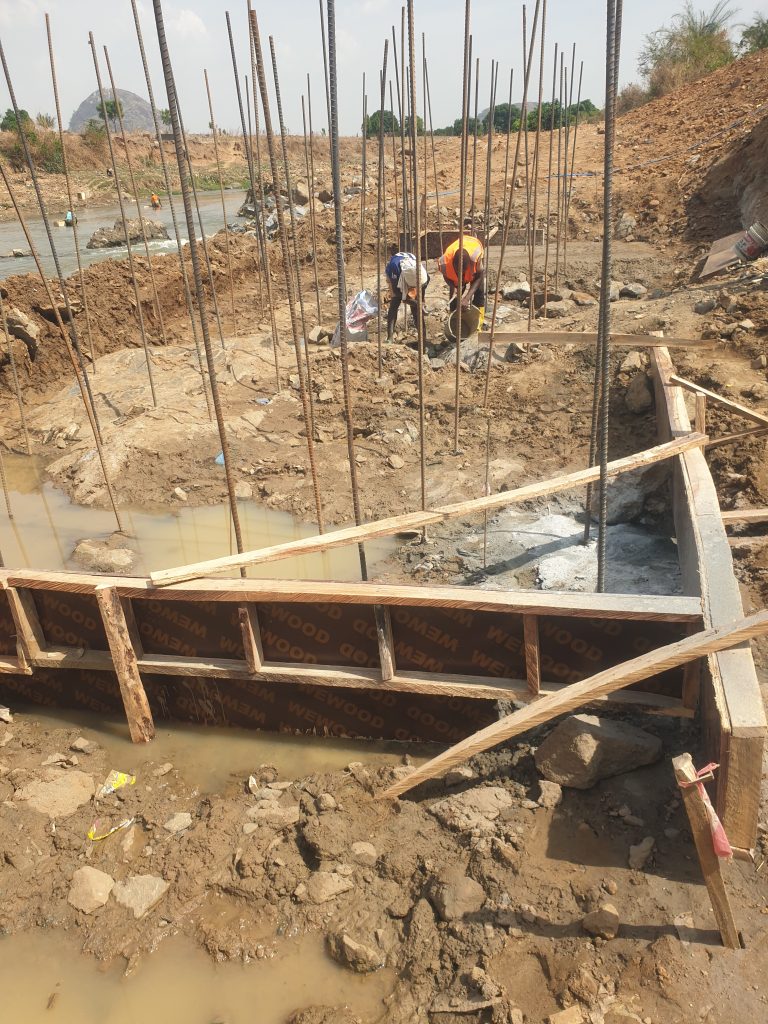

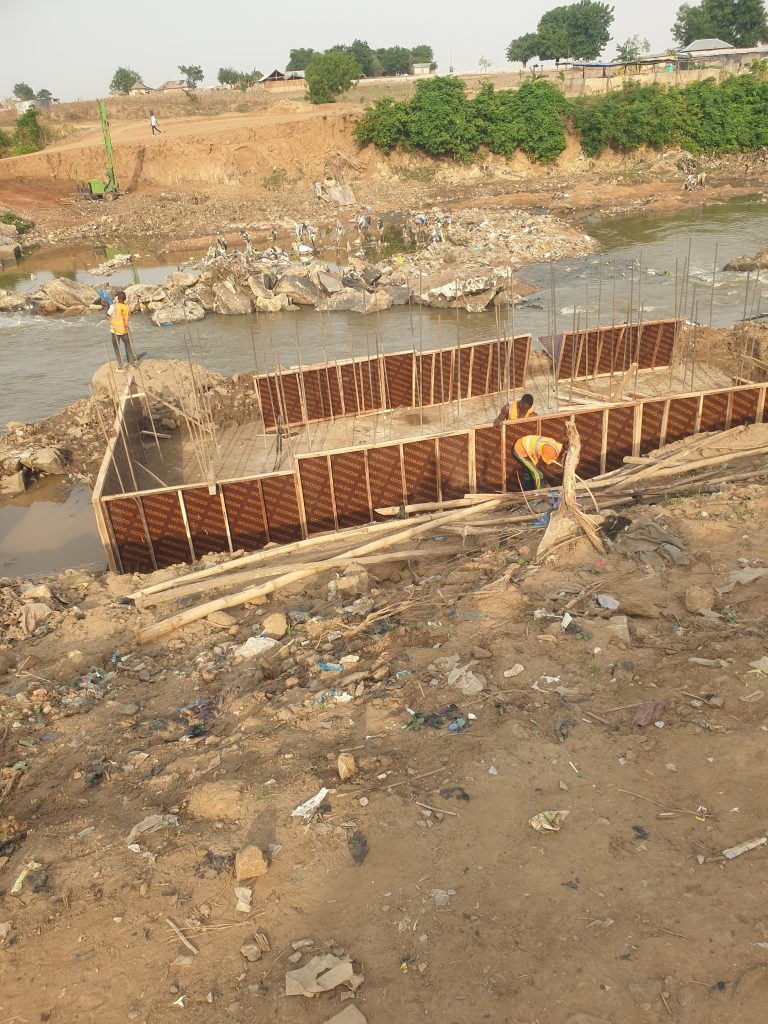

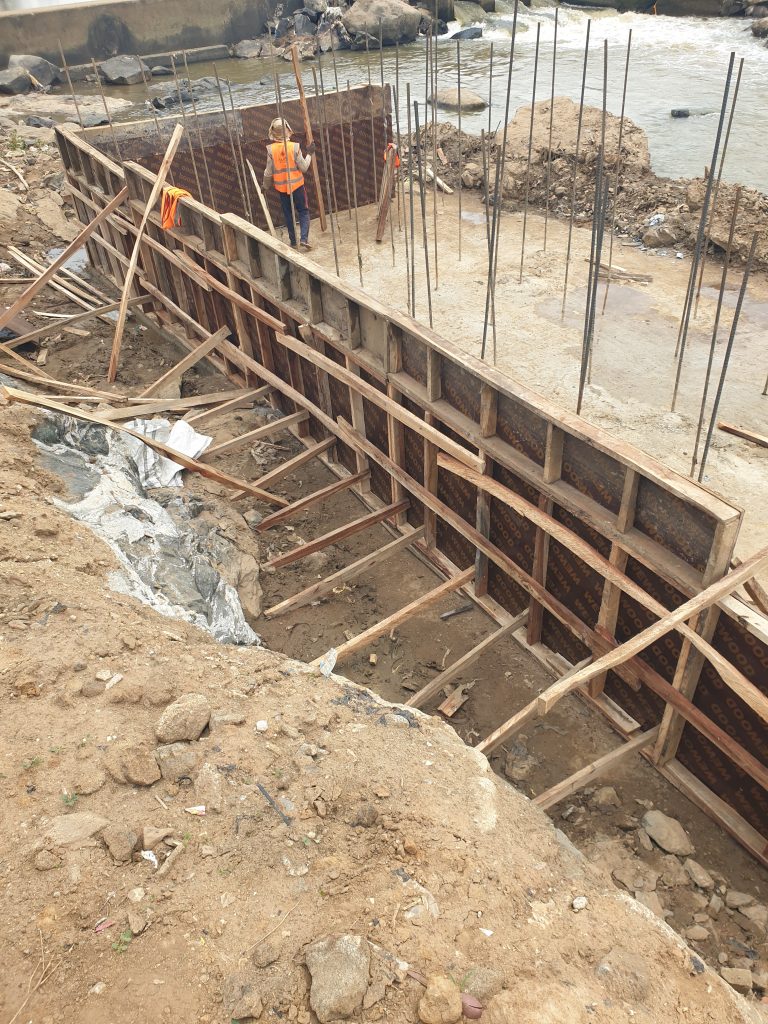

2. Pictures of form-work and reinforcement placed on site before casting concrete
[to be continued]
3. Measurement details of form-work and reinforcement placed on site before casting concrete
[to be included]
Comparison Checklist
We are to Verify pile cap dimensions, pile configuration if available, reinforcement accuracy, blinding concrete quality, structural alignment, and construction note adherence
